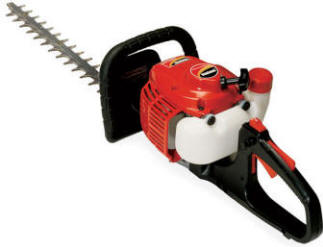

Shindaiwa DH230




Dry weight 24: 12.2 lbs. (5.5 kg)
30: 12.8 lbs. (5.8 kg)
Displacement 1.4 cu in. (22.5 cc)
Output 1.1 hp (0.8 kW) @ 8000 rpm
Fuel tank capacity 20.3 oz. (600 ml)
Overall length 24: 42.5 in. (108 cm)
30: 48.0 in. (122 cm)
True cutting length 24: 20 in. (508 mm)
30: 26 in. (660 mm)

Features



Dual action, double sided blade (DH230 & DH231)
Dual action, single edge blade (HT230 & HT231)
Single thumbscrew easy-access air cleaner
Centrifugal clutch
Clutch shoe liners are made of a high-tech composite material formulated to resist shock loads
Shindaiwa-built premium 2-cycle engine
Chrome-plated cylinder
2-ring piston
3-piece crankshaft
Ball-and-caged needle bearing construction
Walbro WYJ diaphragm carburettor for all-position operation and smooth power
Anti-vibration mounted fuel tank
Fully electronic, 1-piece ignition system
Forced-air cooling, discharged away from operator
Forged one piece clutch drum and bonded shoe clutch
Gearcase features fewer moving parts for improved reliability and serviceability
Improved handle and throttle control
Rear handle with anti-vibration mounts and all-in-one control
